Model |
WP260 |
|
Printing |
|
|
Printing method |
Direct thermal |
|
Printer width |
80mm |
|
Column capacity |
576 dots/line |
|
Printing speed |
260mm/s |
|
Interface |
USB+Serial+Lan |
|
Printing paper |
79.5±0.5mm×φ80mm |
|
Line spacing |
3.75mm (Adjustable by commands) |
|
Print command |
ESC/POS |
|
Column number |
80mm paper: Font A – 42 columns or 48 columns/ |
|
Character size |
ANK，Font A：1.5×3.0mm（12×24 dots）Font B：1.1×2.1mm（9×17 dots） Chinese,traditional Chinese:3.0×3.0mm（24×24 dots） |
|
Cutter |
|
|
Auto cutter |
Partial |
|
Barcode Character |
|
|
Extension character sheet |
PC437(Std.Europe)、(Katakana)n、PC850(Multilingual) 、PC860(Portugal)、PC863(Canadian)、PC865(Nordic)、(West Europe)、(Greek)、(Hebrew)、(East Europe)、(Iran) 、(WPC1252)、PC866(Cyrillic#2)、PC852(Latin2)、(PC858) 、(IranII)、(Latvian)、(Arabic)、 |
|
1D code |
UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128 |
|
2D code |
QR Code / PDF417 |
|
Buffer |
|
|
Input buffer |
128Kbytes |
|
NV Flash |
256k bytes |
|
Power |
|
|
Power adaptor |
Input：AC 100V-240V, 50～60Hz |
|
Power source |
Output：DC 24V/2.5A |
|
Cash drawer output |
DC 24V/1A |
|
Physical characteristics |
|
|
Weight |
1.0KG |
|

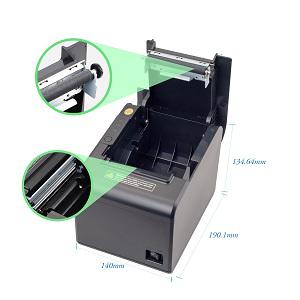

Dimensions |
190.16(D)*140(W)*134.64(H)mm |
|
Environmental Requirements |
|
|
Work environment |
Temperature (0～45℃) humidity(10～80%)（non-condensing) |
|
Storage environment |
Temperature(-10～60℃) humidity(10～90%) |
|
Reliability |
|
|
Cutter life |
1.5 million cuts |
|
Printer head life |
150KM |
|
Driver |
|
|
Drivers |
Win 9X / Win 2000 /Win 2003 /Win XP /Win 7 /Win 8 /Win 10/Linux |
